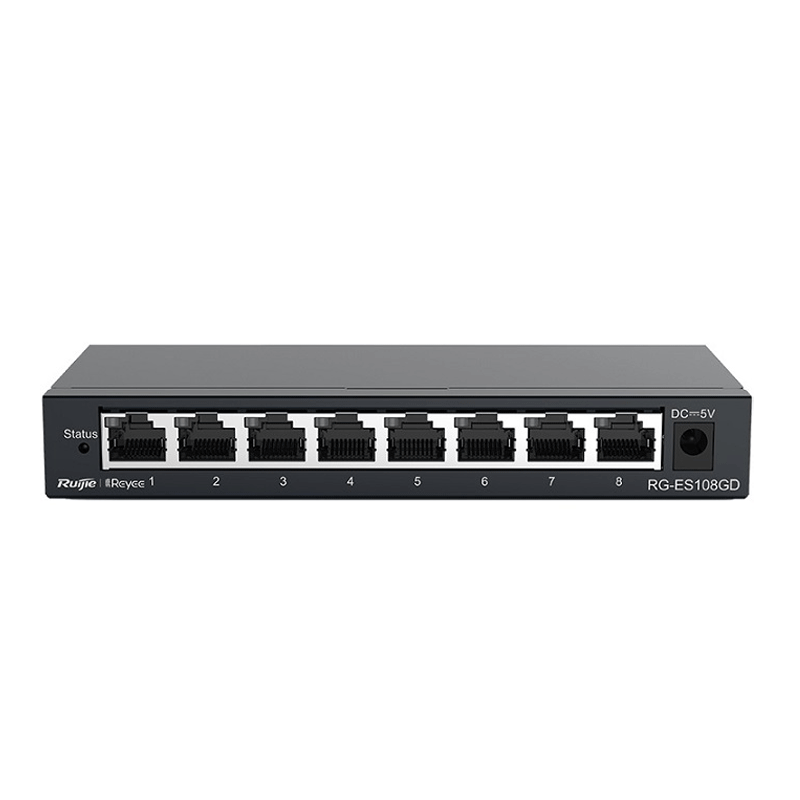

8-port Gigabit Unmanaged Switch RUIJIE RG-ES108GD

- RG-ES100 Series supports self-adaptive ports and plug-and-play feature with zero configuration.

- The entire casing is made of metal which provides better heat dissipation.

- The compact size allows easy installation in the ELV box at home or the waterproof surveillance junction box, as it only takes up little space.

- The high-quality 8-core network cable and enterprise-grade components ensure no packet loss or lagging for data transmission.

Specifications

Model   RG-ES108GD

Port 8 10/100/1000Mbps RJ45 ports

Maximum port forwarding rate 1000Mbps

Auto-MDI/MDIX Support

MAC address 8K

Backplane bandwidth 16Gbps

Maximum packet forwarding rate 11.9Mpps

LED indicator Link/Act status LED indicator for each port, Power indicator

Dimensions 119 x 62 x 24 mm

Power input/output External 5VDC 1.0A

Maximum power consumption ≤5W

Working Temperature 0℃~40℃

Storage temperature -40℃~70℃

Working humidity 10%~90% RH non-condensing

Storage humidity 5%~90% RH non-condensing
