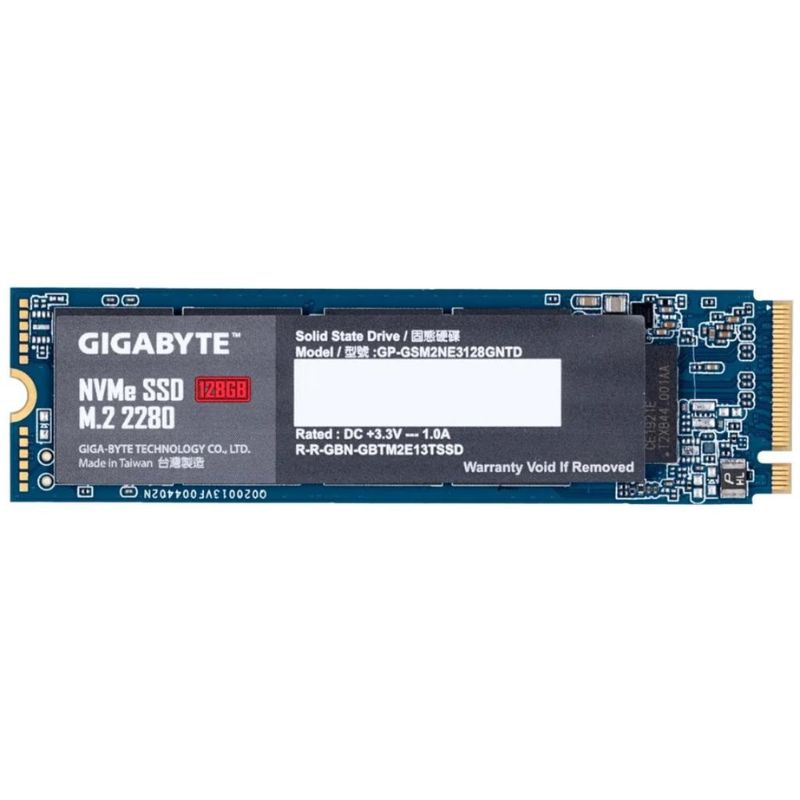

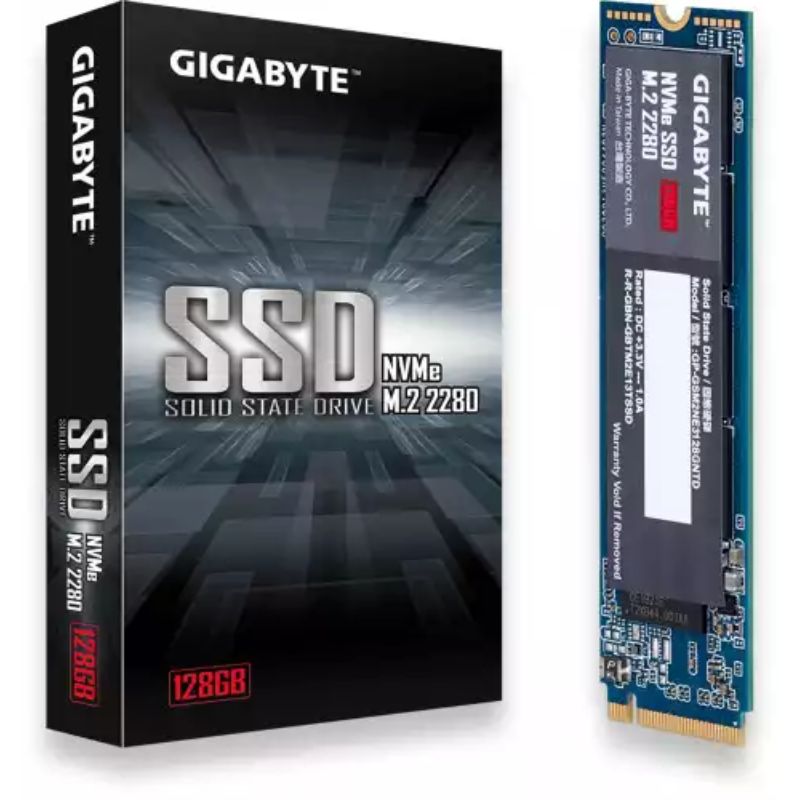

Description

Interface

PCI-Express 3.0 x2, NVMe 1.3

Form Factor

M.2 2280

Total Capacity

128GB

NAND

NAND Flash

External DDR Cache

N/A

Sequential Read speed

Up to 1100 MB/s

Sequential Write speed

Up to 500 MB/s

Random Read IOPS

Up to 90K

Random Write IOPS

Up to 100K

Dimension

80 x 22 x 2.3 mm

Mean time between failure (MTBF)

1.5M hours

Power Consumption (Active)

Average : R : 2510mW ; W : 1850mW

Power Consumption (Idle)

50mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Warranty

1. Limited 3-years or 100TBW.

2. Limited warranty based on 3 years or 100TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
