• Soft, white LED illumination eliminates glare without compromising performance.
• Simple to install, with power-over-USB.
• Available with powerful 2D imaging capable of reading digital coupons off smartphone screens, and printed ID cards.

• MECHANICAL
  Dimensions (HxWxD)	148 mm x 152 mm x 85 mm (5.83 in x 5.98 in x 3.35 in)
  Weight	527 g (19 oz.)
  ELECTRICAL
  Scanner Unit
  Input Voltage	5.0 to 5.2 V (not including auxiliary scanner)
  Operating Current:	400mA (not including auxiliary scanner)
  Standby Current	270mA (not including auxiliary scanner)
  Sleep Mode Current	210mA (not including auxiliary scanner)
  Power Supply (sold separately)	Input Voltage: 100 - 240V/50 - 60HZ Output Current: 5.2V / 1.0 A

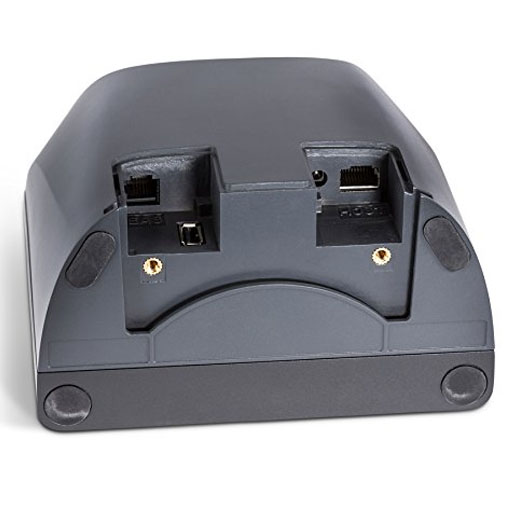

  Host System Interfaces	USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
  ENVIRONMENTAL
  Operating Temperature	0°C to 40°C (32°F to 104°F)
  Storage Temperature	-20°C to 60 °C (- 4°F to 140°F)
  Humidity	5% to 95% relative humidity, non-condensing
  Environmental Sealing	IP5X
  Light Levels	100,000 lux
  SCAN PERFORMANCE
  Scan Pattern	Area image (1280 x 960 pixel array)
  Motion Tolerance	13mil at optimal focal point
  Scan Angle:	Horizontal: 42°; Vertical: 34°
  Print Contrast:	25% minimum reflectance difference
