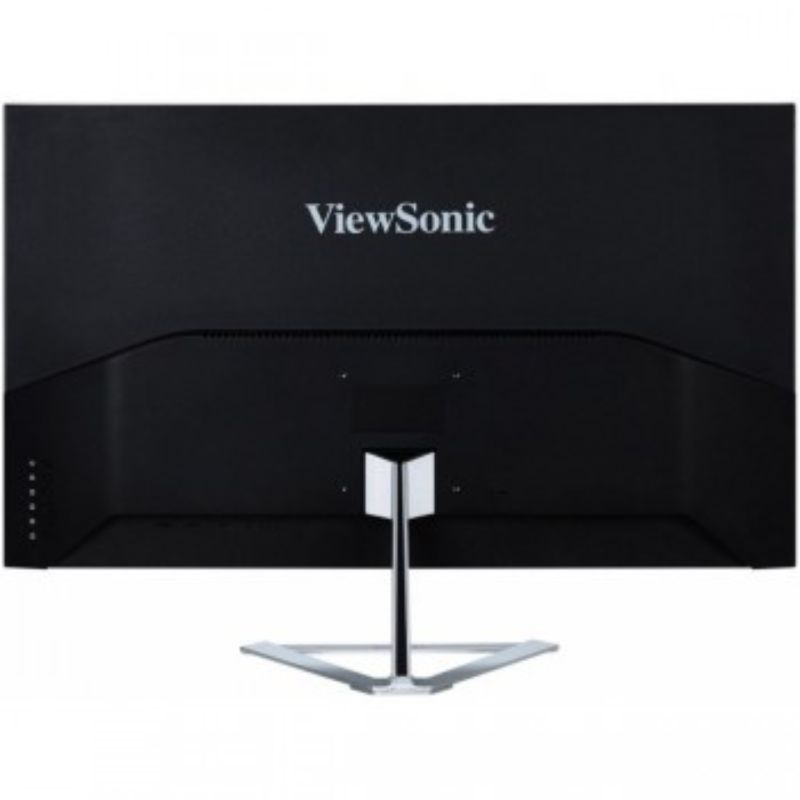

Description

Monitor Size: 32”W (31.5” Viewable)

Panel Technology: SuperClear® IPS TFT LCD

Resolution: 2560 x 1440

Display Area: 698.11mm (H) x 392.68mm (V)

Aspect Ratio: 16:9

Brightness: 250 cd/m² (Typ)

Contrast Ratio: 1200:1 (Typ)

Dynamic Contrast Ratio: 80,000,000:1

Viewing Angle: 178 degrees / 178 degrees (Typ)

Response Time: 4ms (GtG)

Colours: 1.07 Billion colours (10 bits colour depth)

Colour Gamut: 75% of NTSC (Typ)

Panel Surface: Anti-Glare type, Hard-coating (3H), Haze 25%

Pixel Pitch: 0.273mm (H) x 0.273mm (V)

INPUT SIGNAL:

Frequency: HDMI:Fh = 15 ~ 113KHz ; Fv = 24 ~ 75Hz

DisplayPort: Fh = 24 ~ 113KHz ; Fv = 50 ~ 75Hz

Mini DP: Fh = 24 ~ 113KHz ; Fv = 50 ~ 75Hz

Sync: HDMI:TMDS

Display Port: PCI-E

Mini DP: PCI-E

COMPATIBILITY:

PC: Windows 7, Windows 8, Windows 8.1, Windows 10 certified

Mac®: Power Mac tested

CONNECTOR:

Digital: HDMI x 2 (v1.4 compatible) DisplayPort x 1 (v1.2 compatible) Mini DisplayPort x 1 (v1.2 compatible)

Audio Out: Earphone out x 1 (3.5mm plug)

SPEAKERS:

2W x 2

POWER:

Power: 3-pin plug (CEE22) x 1

Voltage: AC 100-240V (Universal); 50/60Hz

Consumption: 43W

Optimize: 41W

Conserve: 36W

ERGONOMICS:

Tilt: 15 ~ -4 degrees

SPECIAL FEATURES:

DDC/2B, DDC/CI, HDCP, Detachable Base, KENSINGTON Microsaver Security Compatible

WALL MOUNT:

VESA®: 100mm x 100mm

OPERATING CONDITIONS:

Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)

Humidity: 20% to 90% (no condensation)

DIMENSIONS (W x H x D) (mm):

Physical with stand (mm): 712.89mm (W) x 503.87mm (H) x 230mm (D)

Physical without stand (mm): 712.89mm (W) x 416.4mm (H) x 38.2mm (D)

Packaging (mm): 785mm (W) x 498mm (H) x 112mm (D)

WEIGHT:

Net with stand (kg): 6.2kg

Net without stand (kg): 5.6kg

Gross (kg): 8.2kg

REGULATIONS:

cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, KC, e-Standby, BIS

PACKAGE CONTENTS:

LCD Display

Power Cable

HDMI Cable

Quick Start Guide
