Description

2 Years Local Warranty

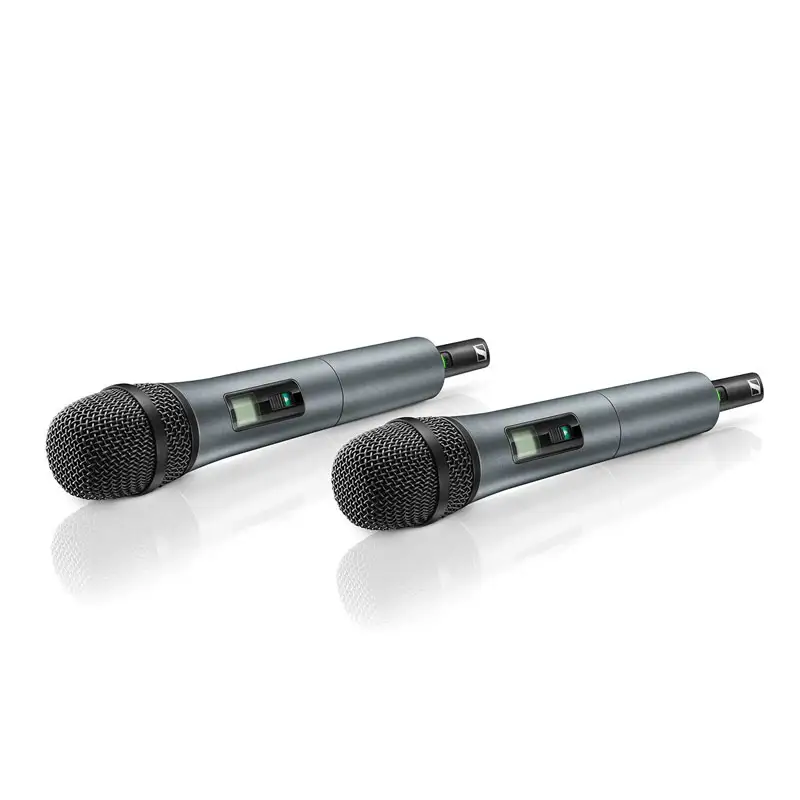

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.

• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules

• Antenna-switching 2-channel diversity reception

• Integrated antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Selectable UHF frequencies within a large bandwidth

• Up to 10 compatible channels

  Specifications

  System

  • Frequency range

    606-630 MHz



  • Dimensions

    Ø 48 x L 180 mm



  • Connector

    XLR-3



  • Frequency response

    55 - 16,000 Hz



  • THD, total harmonic distortion

    ≤ 0.9%



  • Transducer principle

    dynamic



  • Weight

    330 g (0.73 lbs)



  • Pick-up pattern

    cardioid



  • Nominal impedance

    300 Ω (at 1 kHz)



  • Min. terminating impedance

    1 kΩ



  • Storage temperature

    –20°C to +70°C



  • Operating temperature

    0°C to +40°C



  • Signal-to-noise ratio

    ≥ 103 dBA



  • Switching bandwidth

    Up to 24 MHz



  • Modulation

    Wideband FM



  • Frequency

    80 factory presets (8 banks of 10 channels each)



  • Sensitivity

    1.8 mV/Pa (free field, no load at 1 kHz)



  • Synchronization

    Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)



  • Temperature Range

    0 °C ... +40 °C (+32 °F ... +104 °F)
